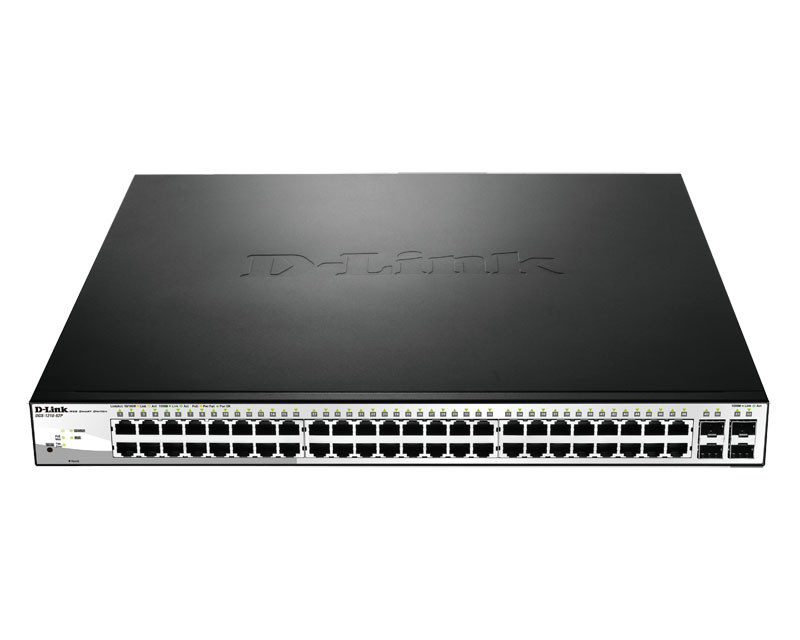

D-Link DGS-1210-52P PoE Switch

Interface

Number of 10/100/1000BASE-TX ports

DGS-1210-10/10P – 8 ports
DGS-1210-20 – 16 ports
DGS-1210-28/28P – 24 ports
DGS-1210-52/52P – 48 ports

Number of SFP ports

DGS-1210-10 – 2 ports
DGS-1210-20/28/28P/52/52P – 4 ports

Number of Combo 1000Base-T/SFP ports

DGS-1210-10P – 2 ports

PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)

DGS-1210-10P (802.3af/802.3at/8 ports/78W)
DGS-1210-28P (802.3af/802.3at/24 ports/193W)
DGS-1210-52P (802.3af/802.3at/24 ports/193W)

Performance

Switch Capacity

DGS-1210-10/10P – 20 Gbps
DGS-1210-20 – 40 Gbps
DGS-1210-28/28P – 56 Gbps
DGS-1210-52/52P – 104 Gbps

64-Byte Packet Forwarding Rate

DGS-1210-10/10P – 14.88 Mpps
DGS-1210-20 – 29.8 Mpps
DGS-1210-28/28P – 41.7 Mpps
DGS-1210-52/52P – 77.4 Mpps

MAC Address Table Size

16K

Packet Buffer

DGS-1210-10P – 1 MB per device
DGS-1210-10/20/28/28P – 1.5 MB per device
DGS-1210-52/52P – 3 MB per device

Jumbo Frame

Up to 9,216 Bytes1

Physical & Environmental

Power Consumption (Standby/Maximum)

DGS-1210-10 – 9.4W / 13.59W
DGS-1210-10P – 8W / 97W (PoE on)
DGS-1210-20 – 8.8W / 16.9W
DGS-1210-28 – 17.84W / 22.45W
DGS-1210-28P – 21.9W / 251.3W (PoE)
DGS-1210-52 – 29.49W / 38.27W
DGS-1210-52P – 28.2W / 270.2W (PoE)

Power Input

10 to 240 VAC, 50/60HZ internal universal power supply

Dimensions (W x D x H)

DGS-1210-10 – 280 x 168 x 44 mm
DGS-1210-10P – 330 x 180 x 44 mm
DGS-1210-20 – 280 x 180 x 44 mm
DGS-1210-28 – 440 x 140 x 44 mm
DGS-1210-28P – 440 x 210 x 44 mm
DGS-1210-52 – 440 x 210 x 44 mm
DGS-1210-52P – 440 x 430 x 44 mm

Weight

DGS-1210-10 – 1.54 kg
DGS-1210-10P – 1.86 kg
DGS-1210-20 – 1.28 kg
DGS-1210-28 – 1.67 kg
DGS-1210-28P – 2.54 kg
DGS-1210-52 – 2.58 kg
DGS-1210-52P – 5.66 kg

Ventilation

DGS-1210-10 – faneless
DGS-1210-10P – fanless
DGS-1210-20 – fanless
DGS-1210-28 – fanless
DGS-1210-28P – smart fans
DGS-1210-52 – smart fans
DGS-1210-52P – smart fans

Heat Dissipation

DGS-1210-10 – 46.37 BTU per hour
DGS-1210-10P – 330.96 BTU per hour
DGS-1210-20 – 54.91 BTU per hour
DGS-1210-28 – 76.56 BTU per hour
DGS-1210-28P – 840.89 BTU per hour
DGS-1210-52 – 130.58 BTU per hour
DGS-1210-52P – 912.96 BTU per hour

Temperature

Operating: -5° to 50°C (23° to 112°F)
Storage: -20° to 70°C (-4° to 158°F )

Humidity

Operating: 0% ~ 95% non-condensing
Storage: 0% ~ 95% non-condensing

Certification

DGS-1210-10/20/28/52 – CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick
DGS-1210-10P/28P/52P – CE Class A, VCCI Class A, FCC Class A, BSMI, CCC, C-Tick, cUL, CE (LVD)

Software Feature

L2 Features

MAC Address Table
16K entries
IGMP Snooping
IGMP v1/v2 Snooping
Supports 256 IGMP groups
Supports at least 64 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
Loopback Detection
802.3ad Link Aggregation:
DGS-1210 28/28P: Maximum of 14 groups/8 ports per group
DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group
DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group
LLDP
LLDP-MED
Jumbo Frame
Up to 9,216 bytes1
Spanning Tree Protocol
802.1D STP
802.1w RSTP
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Port Mirroring
One-to-One
Many-to-One
Supports Mirroring for Tx/Rx/Both
Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
Configurable MDI/MDIX
MLD snooping v1/v2 (256 groups)

VLAN

802.1Q
VLAN Group
Max. 256 static VLAN groups
Configurable VID from 1 – 4094
Asymmetric VLAN
Auto Voice VLAN
Max. 10 user-defined OUI
Max. 8 default OUI
Auto Surveillance VLAN

Quality of Service (QoS)

802.1p Quality of Service
8 queues per port2
Queue Handling
Strict
Weighted Round Robin (WRR)
Bandwidth Control
Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
QoS based on:
802.1p Priority Queues
DSCP
ToS
IPv6 Traffic Class
TCP/UDP port

L3 Features

IP Interface
Supports 1 interface
IPv6 Neighbor Discovery (ND)

Access Control List (ACL)

Max. 50 access list
Max. 768 rules shared by IPv4, MAC and IPv63
Each rule can only be associated with a single port
ACL based on
802.1p priority
VLAN
MAC address
Ether type
IP address
DSCP
Protocol type
TCP/UDP port number
IPv6 Traffic Class

Security

Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
DHCP Server Screening
IP-MAC-Port Binding (Smart Binding)
Supports 512 address binding entries
ARP Inspection
ARP + IP Inspection
Supports DHCP Snooping
802.1X Port-based Access Control
ARP Spoofing Prevention
Max. 64 entries
Traffic Segmentation
SSH v2
SSL
Supports v1/v2/v3
Port Security
Supports up to 64 MAC addresses per port
Duplicate address detection

AAA

802.1X Authentication
Supports local/RADIUS database
Supports port-based access control
Supports EAP, OTP, TLS, TTLS, PEAP
IPv6 RADIUS Server
Support MD5 authentication

MIB/RFC Standards

RFC 783 TFTP
RFC 951 BootP/DHCP Client
RFC 1157 SNMP v1, v2, v3
RFC 1213 MIB II
RFC 1215 MIB Traps Convention
RFC 1350 TFTP
RFC 1493 Bridge MIB
RFC 1769 SNTP
RFC 1542 BootP/DHCP Client
RFC 1901 SNMP v1, v2, v3
RFC 1907 SNMP v2 MIB
RFC 1908 SNMP v1, v2, v3
RFC 2131 BootP/DHCP Client
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Authentication
RFC 2233 Interface Group MIB
RFC-2246 SSL
RFC 2475
RFC 2570 SNMP v1, v2, v3
RFC 2575 SNMP v1, v2, v3
RFC 2598 CoS
RFC 2618 RADIUS Authentication
RFC 2819 RMON v1
RFC 2865 RADIUS Authentication
RFC 3164 System Log
RFC 3195 System Log
RFC 3411-17 SNMP
D-Link Private MIB
LLDP MIB
Zone Defense MIB
2233 Interface Group MIB

OAM

Cable Diagnostics
Factory Reset

Management

Web-based GUI
D-Link Network Assistant Utility
Compact CLI
Telnet Server
TFTP Client
Configurable MDI/MDIX
SNMP
Supports v1/v2c/v3
SNMP Trap
Backup/Upgrade firmware
Smart Wizard
Upload/Download Configuration file
System Log
Max. 500 log entries
BootP/DHCP Client
SNTP
ICMP v6
IPv4/v6 Dual Stack
DHCP Auto Configuration
Time Setting
SNTP
RMONv1
Trusted Host

Green V3.0 Technology

Power Saving by:
Link Status
Time-based PoE: PoE ports can be turned on/off by port or system through schedule
LED Shutoff
System Hibernation
Port Shutoff

1 for DGS-1210-10P: Jumbo Frame up to 10,000 Bytes
2 for DGS-1210-10P: 4 queues per port
3 for DGS-1210-10P: Max. 200 rules shared by profiles
