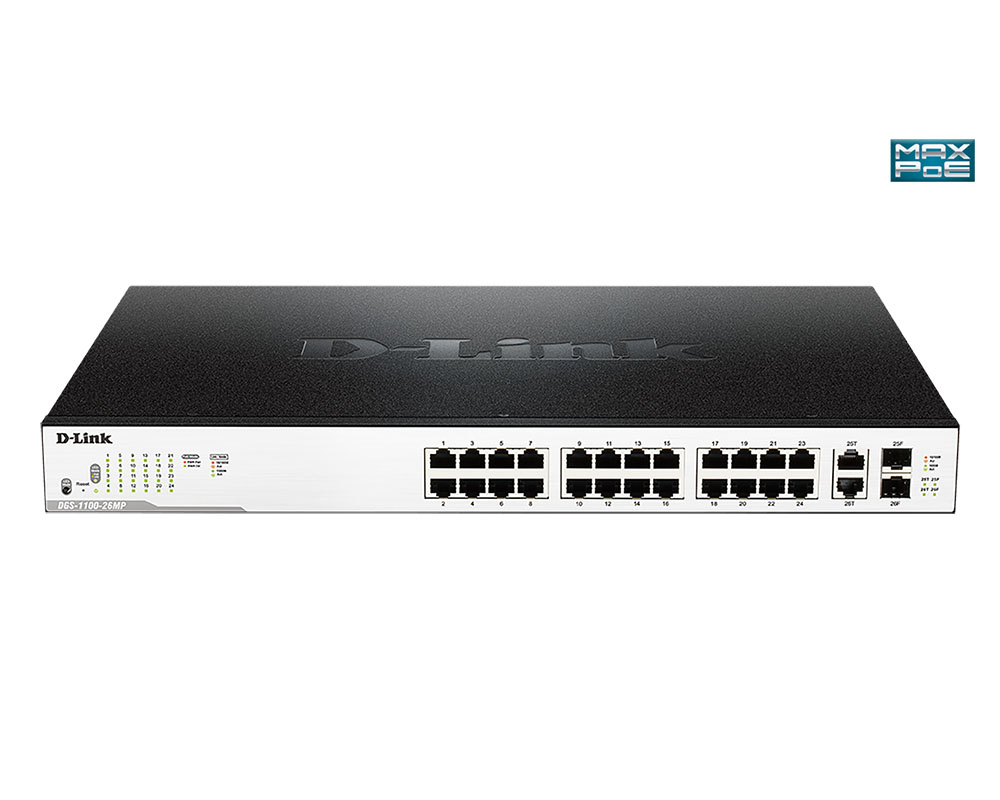

D-Link DGS-1100-26MP PoE switch

The DGS-1100 Series Gigabit Smart Managed Switches consists of:

DGS-1100-26MP: 26-Port Gigabit Max PoE Smart Managed Switch including 2 comb ports (24 x PoE ports, fan)

Features

Physical

Various selection of port counts, with or without PoE and fibre support
Fanless design for silent operation (non-PoE models only)

Green Technology

Link Status detection
IEEE 802.3az compliant
Time-based PoE (PoE models excluding DGS-1100-08P)

Advanced Features

Bandwidth Control
IEEE 802.1Q VLAN traffic segregation
Port-based VLAN
IEEE 802.1p QoS
Surveillance VLAN
Voice VLAN

Management Features

Client-based utility or web-based GUI
Built-in SNMP MIB¹

Video Surveillance Mode (MP Models)

Surveillance optimised web interface
High PoE budget and PoE+ ports
Per-port 6 kV surge protection
ONVIF support

Technical Specifications

Interface

Number of 10/100/1000BASE-TX ports

DGS-1100-26MP – 24 ports

Number of combo ports

DGS-1100-26MP – 2 ports

PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)

DGS-1100-08P (802.3af/8 ports/64W)
DGS-1100-10MP (802.3af/802.3at/8 ports/130W)
DGS-1100-10MPP (802.3af/802.3at/802.3bt draft/UPoE/8 ports/130W)
DGS-1100-24P (802.3af/802.3at/12 ports/100W)
DGS-1100-26MP (802.3af/802.3at/24 ports/370W)

Performance

Switch Capacity

DGS-1100-26MP – 52 Gbps

Maximum Forwarding Rate

DGS-1100-26MP – 38.69 Mpps

MAC Address Table Size

DGS-1100-26MP – 16K

Packet Buffer

DGS-1100-26MP – 1.5 Mbits

Flash Memory

DGS-1100-26MP – 16Mbytes

Diagnostic LED Indicators

Power (Per Device)

Yes

Link/Activity/Speed (Per Port)

Yes

Physical & Environmental

Power Consumption (Maximum)

DGS-1100-26MP – 387W (PoE on)

Power Input

DGS-1100-26MP – 100 to 240 VAC, 50 to 60Hz internal universal power supply

Dimensions (W x D x H)

DGS-1100-26MP – 440 x 290 x 44 mm

Weight

DGS-1100-26MP – 3.81 kg

Ventilation

DGS-1100-26MP – 2 fans

Heat Dissipation

DGS-1100-26MP – 1470.46 BTU per hour

MTBF

rs
DGS-1100-26MP – 269,291 hours

Temperature

DGS-1100-26MP – operating: -5° to 50°C (23° to 122°F), storage: -40° to 70°C (-40° to 158°F )

Humidity

DGS-1100-26MP – operating: 0% ~ 95% Non-condensing, storage: 0% ~ 95% Non-condensing

EMI/EMC

DGS-1100-26MP – FCC/IC, CE, VCCI, RCM, BSMI

Safety

DGS-1100-26MP – cUL, UL, GS, CB

Software Features (DGS-1100-26MP)

VLAN

Port-based VLAN
802.1Q tagged VLAN
Auto Surveillance VLAN
Voice VLAN
Management VLAN
Asymmetric VLAN
VLAN Group
Supports 128 static VLAN groups
Max. 4094 VIDs

L2 Features

Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo Frames up to 9216 Bytes
IGMP Snooping
IGMP v1/v2/v3 awareness Snooping
Supports 64 Groups
IGMP Snooping Querier
802.3ad Link Aggregation:
DGS-1100-26MP: Support 13 groups per device and 8 ports per group
Loopback Detection Ethernet Ring Protection Switching²
G.8032 ERPS
Cable Diagnostics
LLDP
Port Mirroring
One-to-One
Many-to-One
Statistics
Tx Ok
Tx Error
Rx Ok
Rx Error
Spanning Tree Protocol
802.1D STP
802.1w RSTP

Quality of Service (QoS)

802.1p Quality of Service
4 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Port-based Bandwidth Control (Rate Limiting)
Ingress: 8 Kbps
Egress: 64 Kbps

Security

D-Link Safeguard
Traffic Segmentation
Broadcast/Multicast/Unknown Unicast Storm Control
DoS Attack Prevention
SSL

Management

Web-based GUI (Supports IPv4/IPv6)
Surveillance Switch Mode (DGS-1100-10MP, DGS-1100-10MPP and DGS-1100-26MP only)
D-Link Network Assistant Utility

Green Technology

Power Saving by
Link Status
LED Shut-Off
Port Shut-Off
System Hibernation
Compliant with IEEE 802.3az Energy Efficient Ethernet

MIB/RFC Standards

RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 1213 MIB II
RFC1493 Bridage MIB
RFC1907 SNMPv2 MIB
RFC1215 MIB Traps Convention
RFC2233 Interface Group MIB
RFC2665 Ether-like MIB
802.1p MIB RFC4363
ZoneDefense MIB
Private MIB
RFC 951 BootP client
RFC 1542 BootP/DHCP client
RFC 4363 802.1p
RFC 2236 IGMP Snooping

Software Features (DGS-1100-08/08P)

VLAN

Port-based VLAN
802.1Q tagged VLAN
Surveillance VLAN
Voice VLAN
Management VLAN
VLAN Group
Supports 32 static VLAN groups
Max. 4094 VIDs

L2 Features

Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo Frames up to 9216 Bytes
IGMP Snooping
IGMP v1/v2 Snooping
Supports 32 Groups
Static Trunk
2 groups, 2-4 ports per group
Loopback Detection
Cable Diagnostics
Port Mirroring
One-to-One
Statistics
Tx Ok
Tx Error
Rx Ok
Rx Error

Quality of Service (QoS)

802.1p Quality of Service
4 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Bandwidth Control
Port-based (Ingress/Egress, min. granularity 8 Kb/s)

Security

Static MAC Address
up to 32 entries
Broadcast/Multicast/Unknown Unicast Storm Control

Management

Web-based GUI (Supports IPv4)
Client-based Utility (SmartConsole Utility)

D-Link Green

Power Saving by
Link Status
Cable Length
Compliant with IEEE 802.3az Energy Efficient Ethernet
Compliant with RoHS 6

RFC Standard List

RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 951 BootP client
RFC 1542 BootP/DHCP client
RFC 1945 HTTP/1.0
RFC 2647 802.1p
RFC 2236, 4451 IGMP Snooping

¹ Supported by the DGS-1100-10MP/10MPP/16/18/24/24P/26/26MP
²For DGS-1100-10MP/10MPP/26MP only
