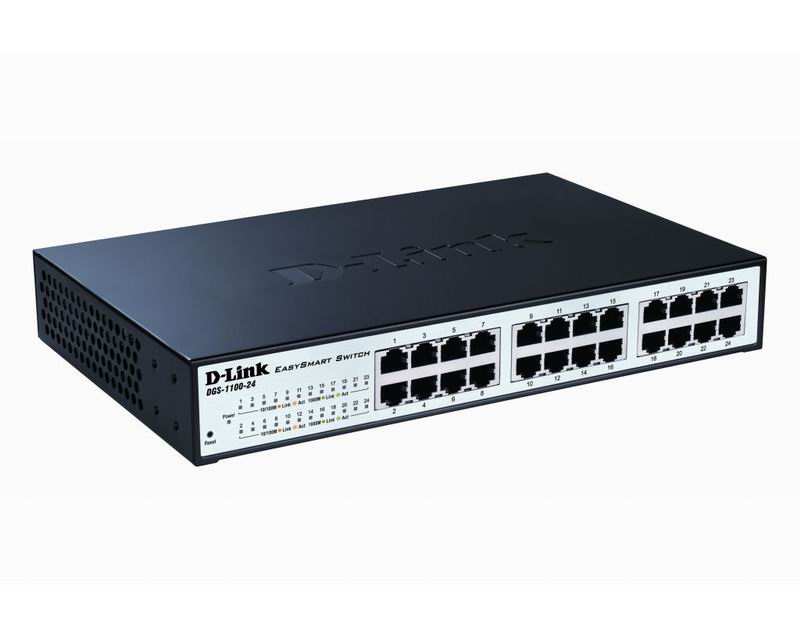

D-Link DGS-1100-24 Switch

Features

10/100/1000Base-TX Fast Ethernet ports
11? desktop size
Auto MDI/ MDIX
802.3x Flow control

Performance

Switching capacity: 48 Gbps (DGS-1100-24)
Max. forwarding rate: 35.71 Mpps (DGS-1100-24)
MAC table: 8K entries
Packet buffer: 3.5 Mbits

Network

Static trunking (8 groups, 2 or 4 ports per group)
Loopback detection (LBD)
Bandwidth control (port-based)
IGMP snooping
Port mirroring

VLAN

802.1q VLAN
Port-based VLAN
Static VLAN (32 groups)
VLAN VID configurable (1-4096)
Auto Surveillance VLAN

Quality of Service (QoS)

802.1p QoS
4 queues per port
Strict priority or Weighted Round Robin (WRR)

Security

Static MAC (128 entries)
Broadcast/Multicast/Unknown Unicast Storm Control

Management

Web-based GUI
SmartConsole Utility
Password control
Configuration backup/restore
Firmware upgradeable

Green features

Green Ethernet, power saving by Link status & Cable length
Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE)
