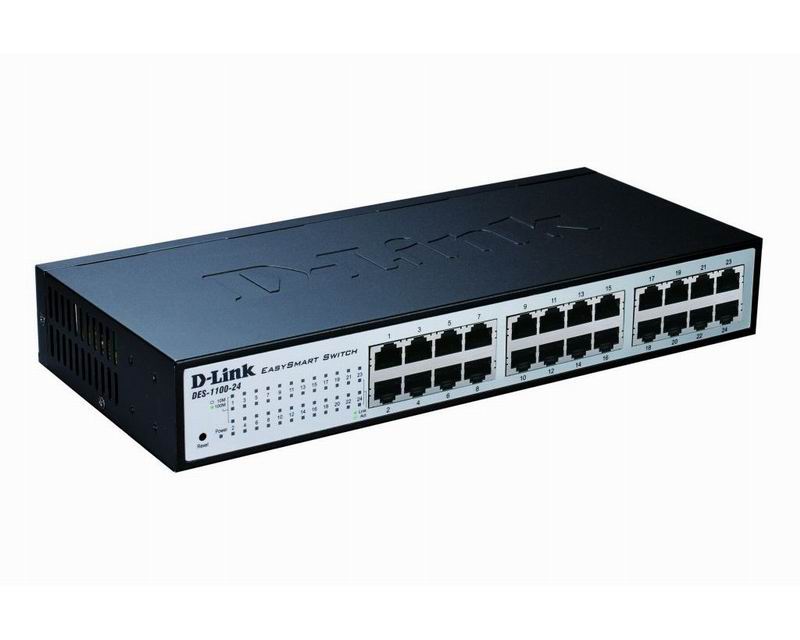

D-Link DES-1100-24 Switch

Features

24 10/100Base-TX Fast Ethernet ports
11″ rack size
Auto MDI/ MDIX
802.3x Flow control

Performance

Switching capacity: 3.2 Gbps (DES-1100-16), 4.8 Gbps (DES-1100-24)
Max. forwarding rate: 2.38 Mpps (DES-1100-16), 3.57 Mpps (DES-1100-24)
MAC table: 8K entries
Packet buffer: 1.75 Mbits

Network

Static trunking (2 groups, 2 or 4 ports per group)
Loopback detection (LBD)
Bandwidth control (port-based)
IGMP snooping
Port mirroring

VLAN

802.1q VLAN
Port-based VLAN
Static VLAN (32 groups)
VLAN VID configurable (1-4096)

Quality of Service (QoS)

802.1p QoS
2 queues per port
Strict priority or Weighted Round Robin (WRR)

Security

Static MAC (128 entries)
Broadcast/Multicast/Unknown Unicast Storm Control

Management

Web-based GUI
SmartConsole Utility
Password control
Configuration backup/restore
Firmware upgradeable
